Automated Peristaltic Liquid Pump (DR2000)

* Size:

Quantity: Add to Cart

Automated Peristaltic Liquid Pump (DR2000)

Programmable Peristaltic Liquid Pump for Automated Maintenance Systems.

Programmable Peristaltic Liquid Pump. (DR2000) ATC

Product Information

Understanding Peristaltic Pumps

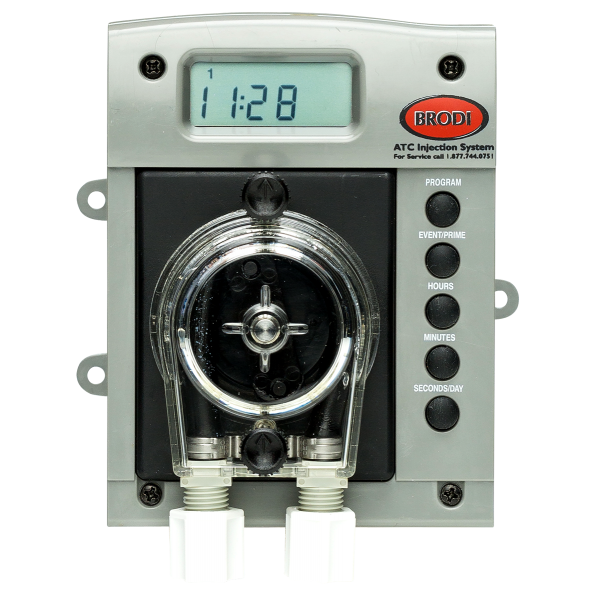

The Brodi Automated Peristaltic Liquid Pump is a precision-engineered peristaltic pump designed for industrial applications, It features a time-activated operation and water-resistant properties. It boasts a digital 7-day clock that allows programming of up to 24 events, each with a distinct runtime ranging from 1 second to 20 minutes. The pump operates at a speed of 100 RPM, delivering a dosing rate of 5 ounces per minute. Programming is conveniently performed via the front-facing 5-key keypad and display screen. The unit is versatile, available in 115 VAC, 230 VAC.

Up to 24 events can be programmed on a digital 7-day clock.
Each event has a unique run time from 1 second to 20 minutes.
Programming is done from the front of the unit using the 5-key keypad and display screen.
115 VAC, 230 VAC and DC-battery-powered versions are available.

Peristaltic pumps use a mechanism inspired by natural peristalsis—the process of rhythmic contractions observed in biological organisms to transport fluids, ensuring precise dispensing of chemicals in liquid form.

Mimicking this natural phenomenon, peristaltic pumps use a set of rollers that rhythmically compress and release a flexible tube enclosed within a circular casing. This action propels fluids through the tube in a wave-like motion, ensuring a seamless flow that is both gentle and precise. The fluid's contact is strictly limited to the tube, eliminating the risk of chemicals affecting the mechanism.
